CS-090 Cold Saw

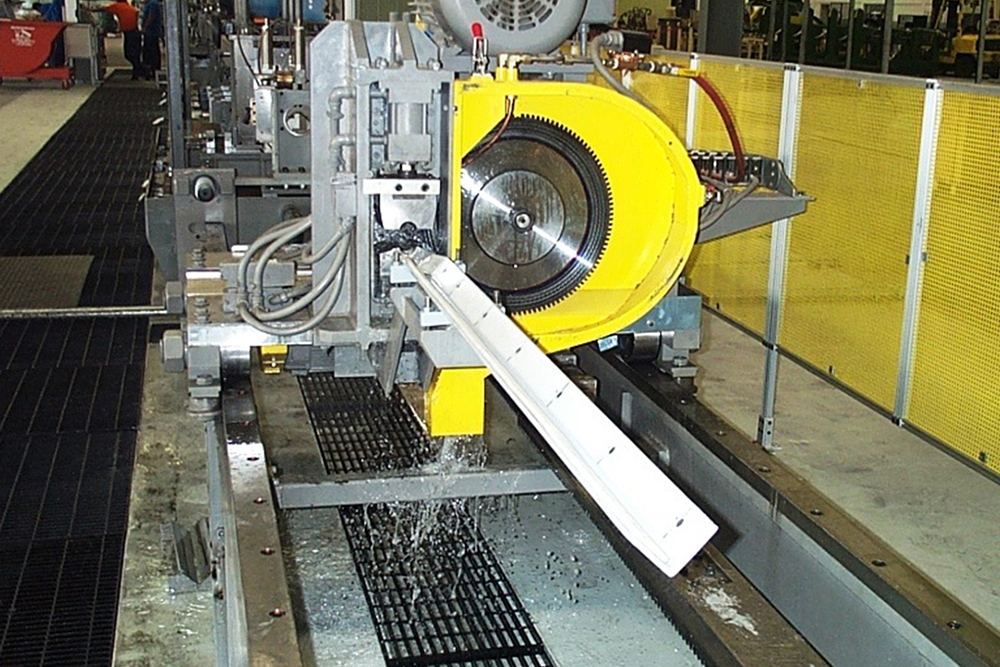

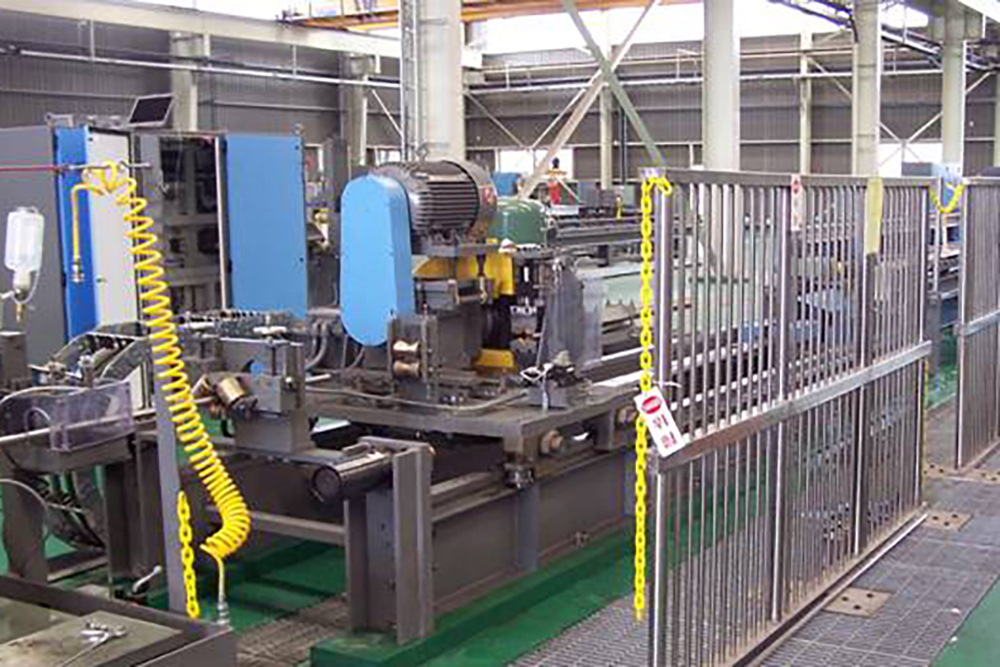

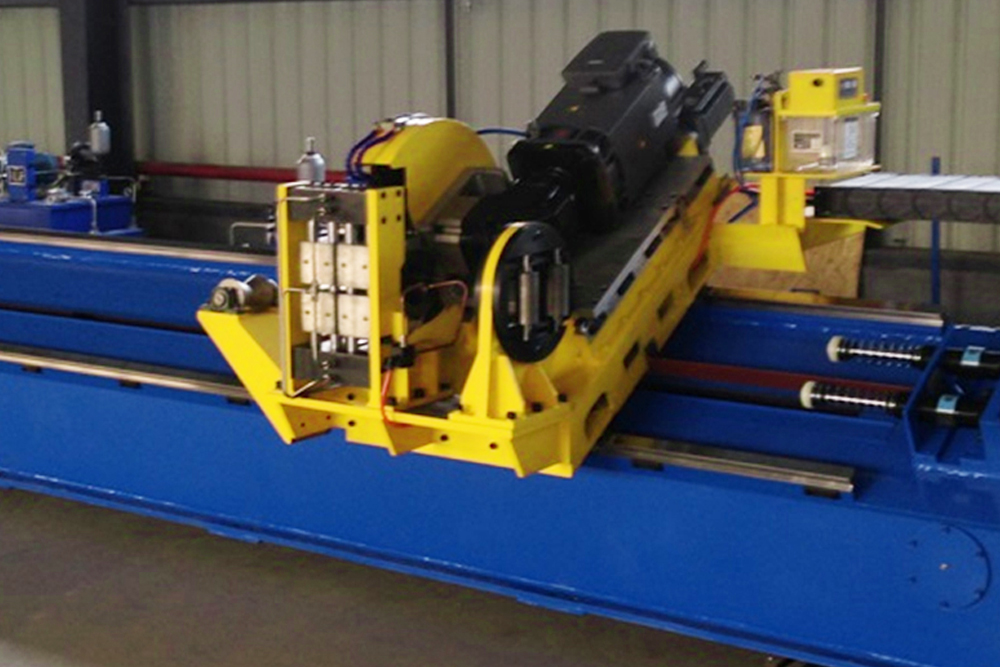

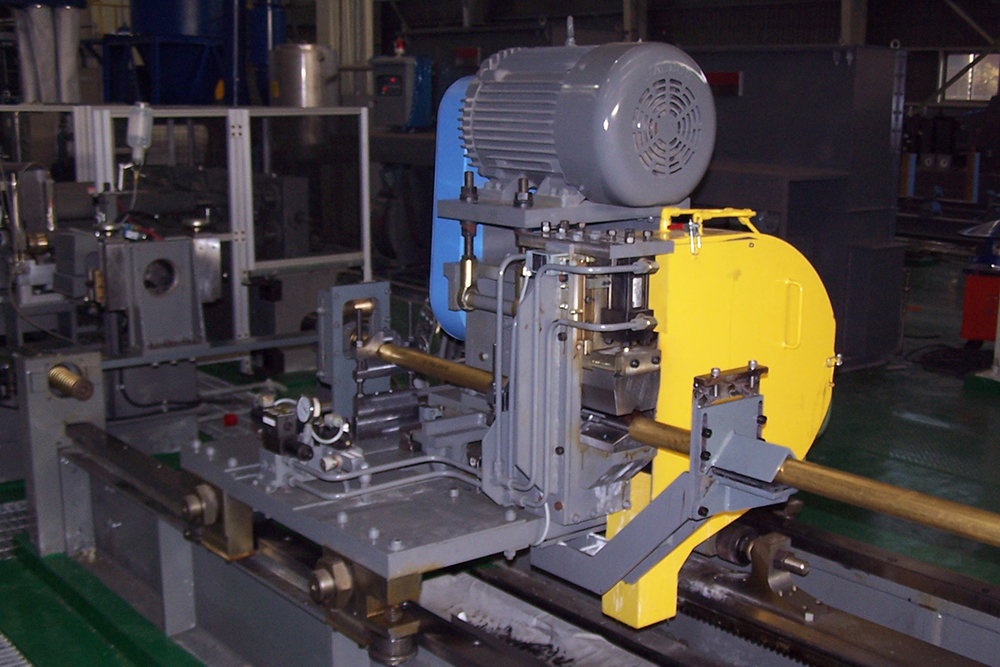

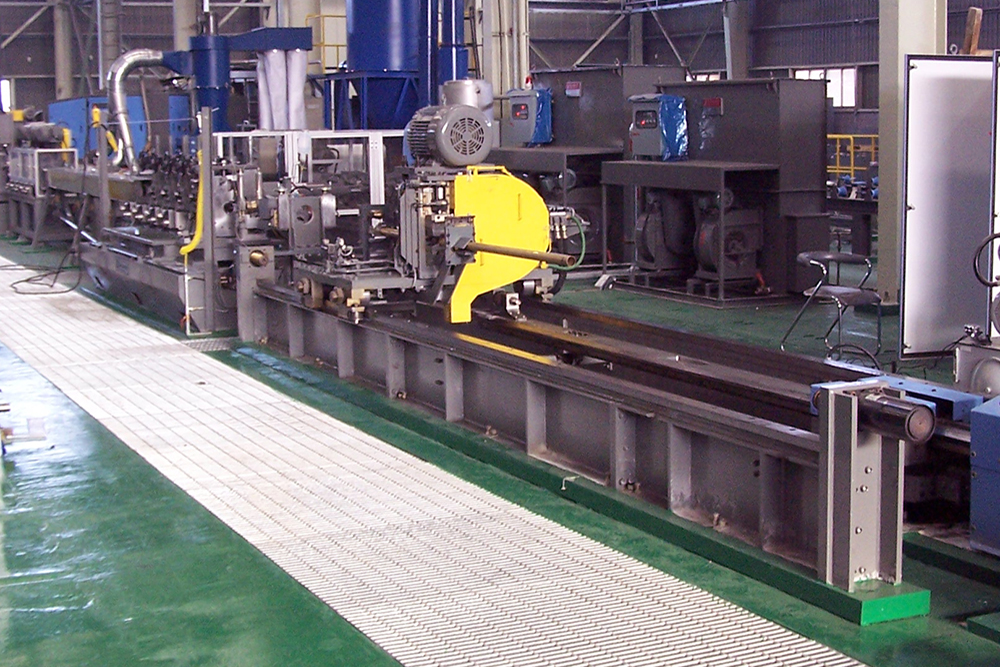

The CS-090 cold saw is a high-speed machine for burr free tube measuring up to 3.5 inches in diameter. This cold saw can provide cut lengths over a wide variety of mill speeds with an unrivaled degree of accuracy and has been tuned to allow the moving carriage to operate with a very high degree of precision. An AC induction motor accelerates the carriage and a ball screw powered by an AC servo motor drives the spindle forward into the product. The AC induction motor is controlled by a variable frequency drive which is interfaced with a real time operating system. This system interfaces the inputs and outputs of various feedback and devices to achieve control of the machine and its peripherals. A control console is provided to allow the operator to input data pertaining to the production schedule which will allow the machine to run with little or no operator interaction.

REQUEST A QUOTE »

Thermatool Corp.

31 Commerce St., East Haven, CT. 06512

Features

  • Ability to program rounds, squares and rectangles
  • Cutting speed control for various tube sizes
  • Display of cumulative cross-sectional area of metal removed during cutting
  • Full system diagnostics
  • Cut length is displayed following each cut

Tech Specs

Maximum Tube O.D. 3.500″ (90 mm)
Minimum Tube O.D. 0.500″ (12.7 mm)
Maximum Wall Thickness 0.160″ (4.1 mm)
Minimum Wall Thickness 0.028″ (0.71 mm)
Material CRS/HRS
Maximum Mill Speed 500 FPM (152 MPM)
Cut Length Tolerance 0.080″ (2 mm)
Accelerator Motor 75 HP Drive
Blade Motor 30 HP
Line Direction Right to Left / Left to Right
Pass Line Height 36″ (914 mm) Nominal*
