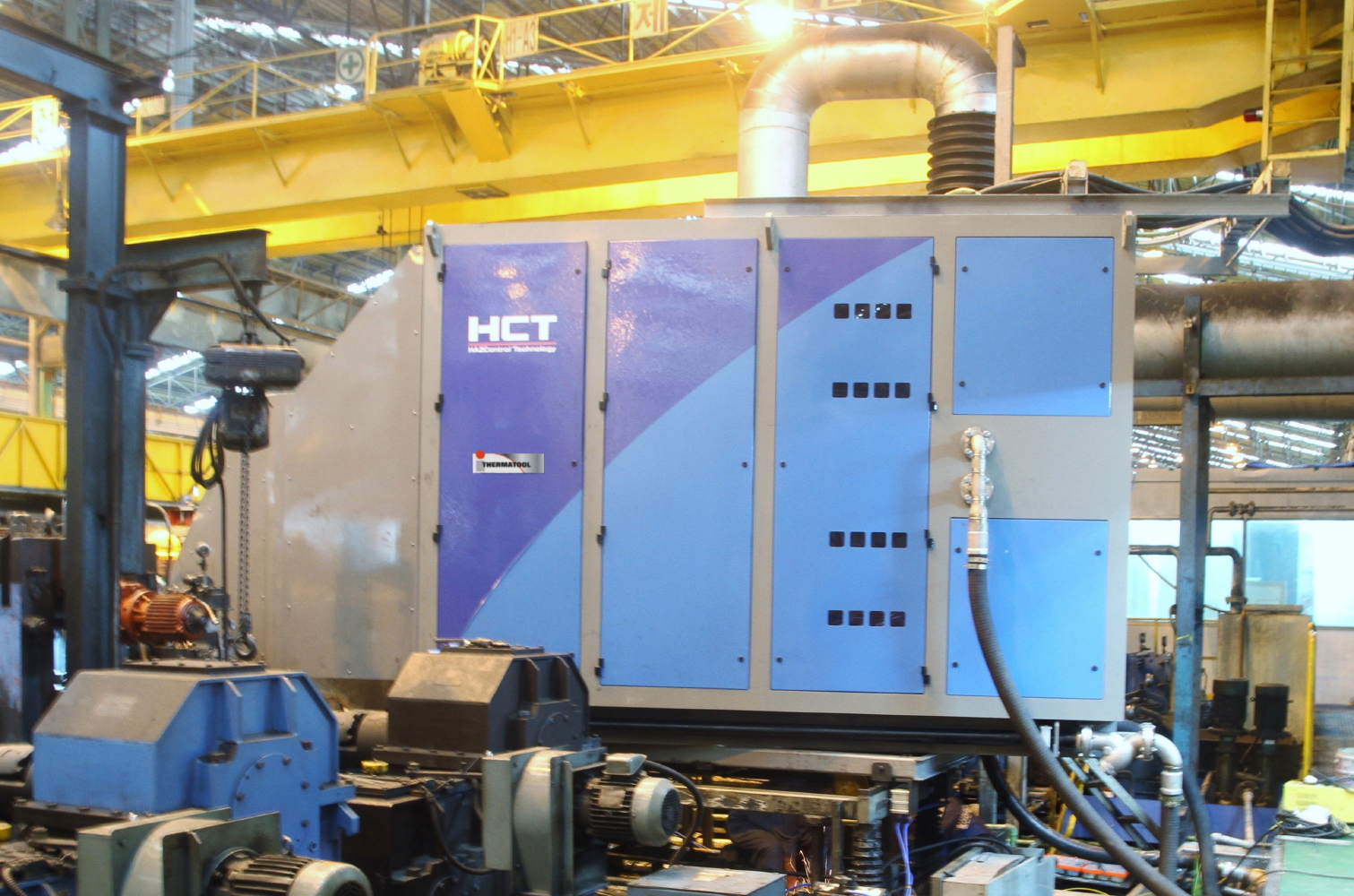

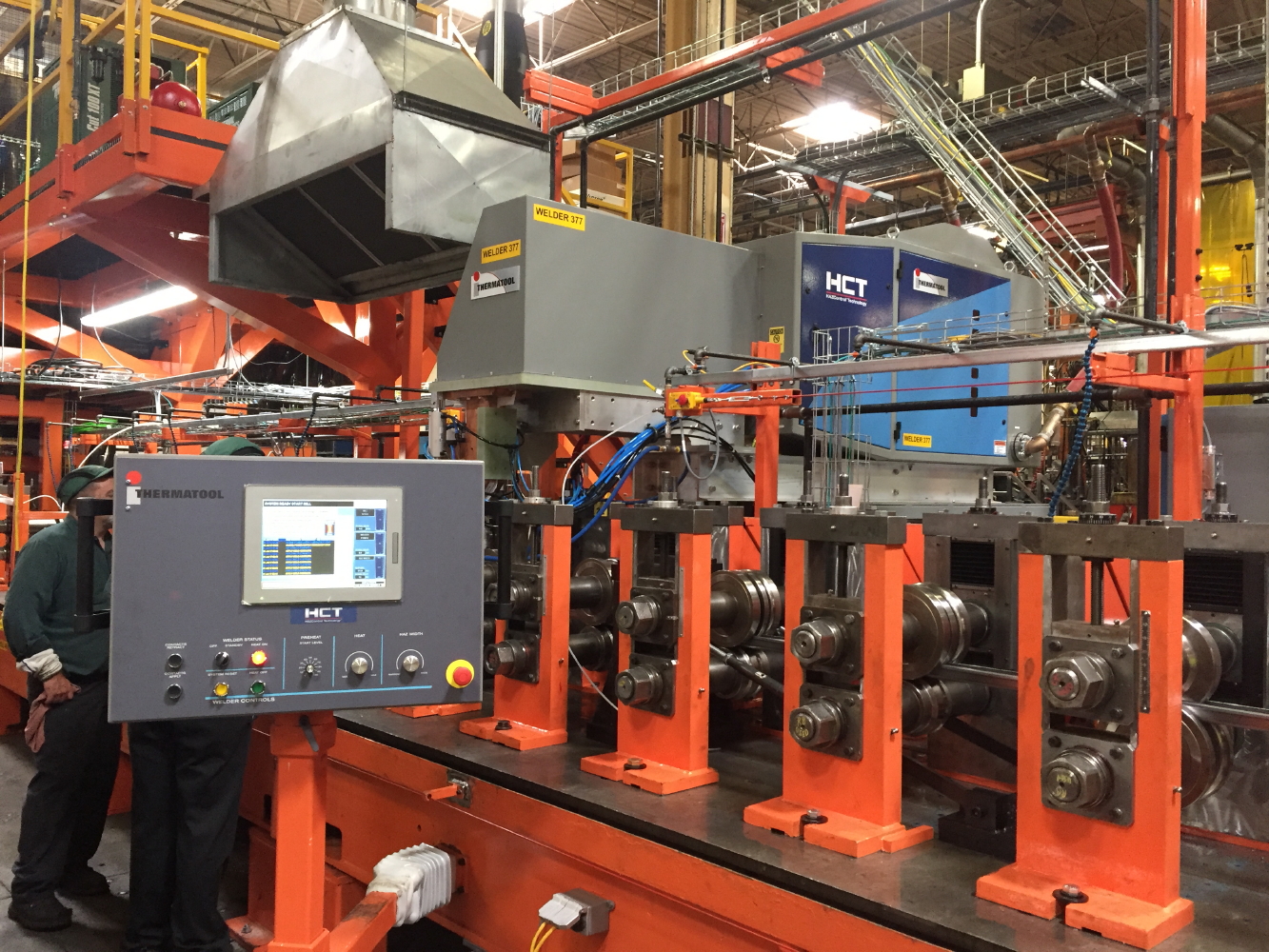

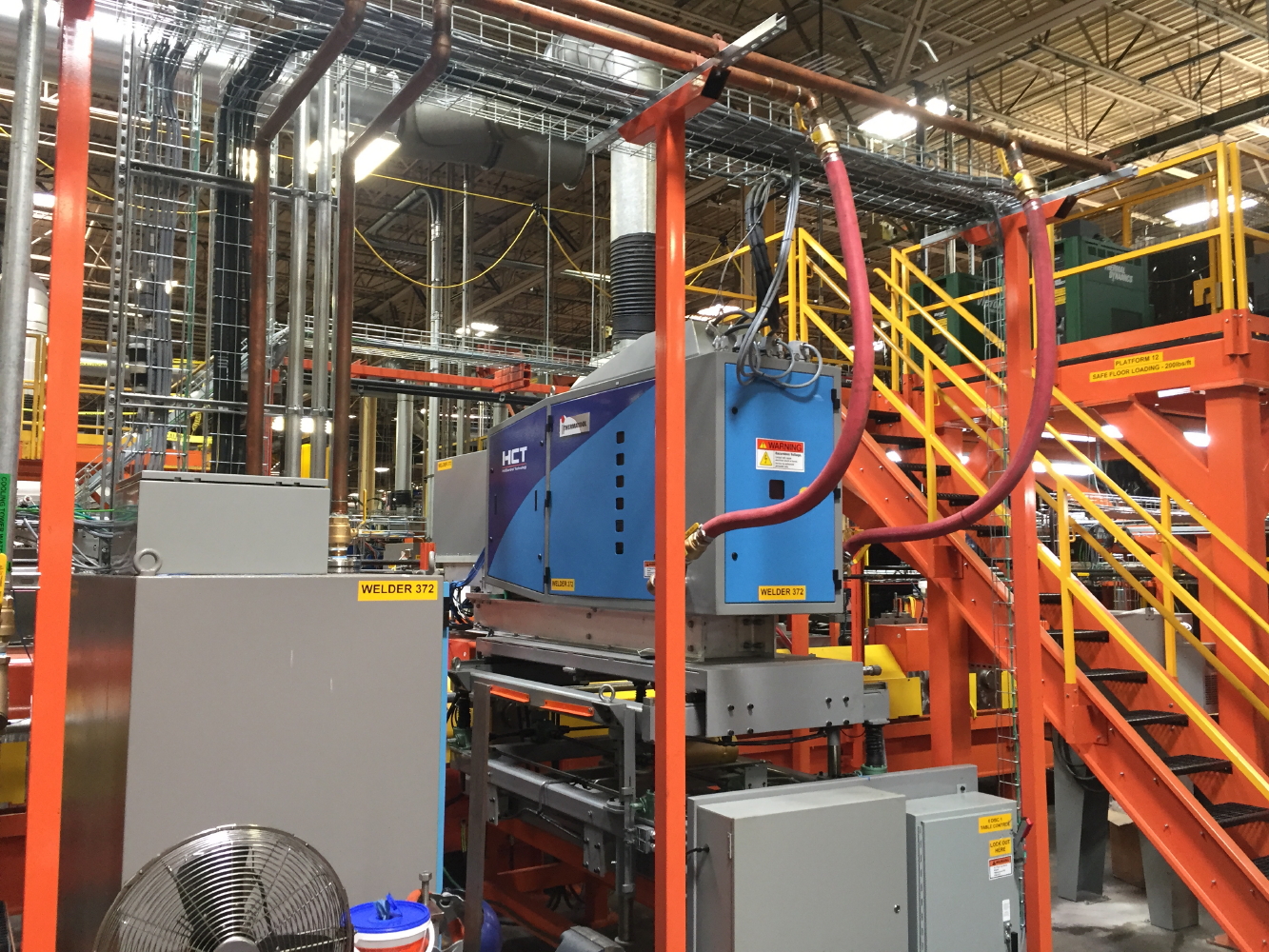

HAZControl® Technology Welder Technology greatly simplifies the complex relationships of the key variables for HF Welding tube: Heat (Power), HAZ Width (Frequency), Vee Length, and Mill Speed. HAZControl® Technology (HCT) allows for the operator to enter the mill setup parameters and tube information into the software and the Variable Frequency HF Welder is set to weld the tube. With independent control of weld power and frequency, the Thermatool Solid State HAZControl™ Welder Technology delivers state of the art precise heat input control on each and every mill run.
Thermatool has released a software and control upgrade: HAZControl™ Technology Upgrade – v4.1
As the only global induction heating and welding manufacturer specializing in tube and pipe welders, Thermatool provides the widest range of HF Welders available.
All of our welders are based on the High Frequency or “HF” welding process that we developed almost 60 years ago and have led the way ever since. With its Current-Fed Inverter (CFI) design, our welding equipment range gives you the capability to successfully weld almost any metal you want – efficiently and economically.
We supply equipment needed to weld carbon and stainless steel, brass, copper, and aluminum, as well as exotic alloys, such as boron steel and HSLA, AHSS, and Trip Steels.
Want to Watch a Reliable Thermatool Welder in Action?
- A high efficiency rating of 85% to meet the ever increasing worldwide electrical energy standards.
- Patented full range Thermatool AutoMatch™ ensures full power output over wide range of product sizes.
- Uses predictive algorithm to calculate the initial recommended HF welding frequency and power settings, based on product geometry and material.
- Frequency can be independently adjusted by the operator or by the suggested settings from the HAZControl™ Technology screen during operation.
- Comes with an operator friendly control system that enables the user and production engineers to tailor weld parameters to their products and mill.
- Complete with VeeAxis™ Control for automated vee length setup.
- Optimal HF weld parameters can be stored for future runs. Recipe recall ensures quality product is produced, turn to turn.
- Table positioning servo can set the induction coil or weld contacts to the specific vee position when the desired vee length is entered in the HMI.
- Equipped with Speed Power Control giving the operator the tools that are needed to start, stop and jog the mill while welding – this keeps scrap to a minimum by reducing open seam.
- Allows for selecting both the precise power and frequency settings to successfully produce the best weld on any tube or pipe mill with virtually any material type.
- Power supply is completely sealed with high quality gaskets, thus eliminating contamination.
- Doors are fitted with lift-off hinges for easy access.
|Power Range||Up to 1000 kW|
|Output Frequency||150-400 kHz + 1% stabilized frequency per load requirements|
|HF Contact Welding||Yes|
|Dual Induction Contact||Yes|
|Weld Tables||Single, 2, 3, VeeAxisTM|
|Speed Power Control||Yes|
Thermatool offers a comprehensive range of induction coils, designed specifically for use with Thermatool solid-state HF induction welders. Manufactured from high conductivity copper, quality inspected and coated for long life, there are numerous types and sizes available to satisfy every application. Many of these models are available for immediate delivery from stock.
Whether you are producing carbon steel, stainless steel, copper, brass, aluminum or galvanized tubing, Thermatool has the induction coil to meet your specific needs. Our comprehensive range of induction coils fully supports the entire range of Thermatool welders with power ratings from 50 kW to 2 MW and operating frequencies ranging from 150 kHz to 800 kHz and variable frequency.
For special coil requirements, Thermatool engineers are pleased to review the possibility of a custom coil design/build.
Thermatool offers an extensive range of impeders to satisfy a very diverse range of tube and pipe welding applications. Whether your mill produces small diameter/thin wall tubing or large diameter/heavy wall API line pipe, Thermatool supplies a complete selection for you. The proper choice of impeder, correctly installed, will play a major part in achieving maximum welding efficiency. It should also be noted that as the performance of all ferromagnetic materials is a function of temperature, it is critically important that the ferrite core is kept as cool as possible during the tube welding process. Ideally, the temperature of the coolant flowing through an impeder should not exceed 25°C. Thermatool also supplies booster pumps for these demanding applications.
Modern tube mills that operate at higher line speeds have created demand for impeders that deliver superior performance. Such enhanced performance can only be achieved by using the very best ferrites available. A growing number of tube and pipe producers worldwide choose Thermatool ferrites in order to optimize the performance of their mills. Thermatool offers four different types of ferrites which can be cut to length, if required. Contact us today to learn more!
